Bathroom fan Vario
Art. nr: 113383
GTIN: 7023671133832
Description
Flexit bathroom fan, Vario, with ball bearing, smart humidity,
timer, speed-adjustment and
remote control. For wall mounting, white.
- Technical data
- Documentation
- Accessories
- Spare Parts
| Performance | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fan speed, max | 2200 r/min | ||||||||||
| Airflow | 33 - 115 m³/h | ||||||||||
| Max pressure | 32 Pa | ||||||||||
| Power | |||||||||||
| Rated voltage | 240 V | ||||||||||
| Frequency | 50 - 60 Hz | ||||||||||
| Power consumption | 3.8 W | ||||||||||
| IP code | IP44 | ||||||||||
| Sound | |||||||||||
| Noise from unit dB(A) | 32 dB | ||||||||||
| Dimensions and weight | |||||||||||
| Width (mm) | 206 mm | ||||||||||
| Height (mm) | 152 mm | ||||||||||
| Weight | 0.59 kg | ||||||||||
| Duct connection (Ø) | Ø100/125 mm | ||||||||||
- Information
- Guides
- Environment and energy
Art. no:400061

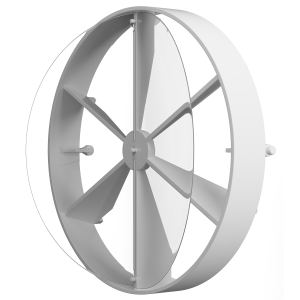

Backdraugh shutter FBD Ø125 plastic
Art. no:400060
Backdraugh shutter FBD Ø100 plastic
Art. no:400084
Gravity grille MW 125 w/spigot Ø125 WH
Art. no:118455
Gravity grille MW 125 w/spigot Ø125 BL
Art. no:400048
Louver PS125 square w/spigot Ø125 white
Art. no:400083
Gravity grille MW 100 w/spigot Ø100 WH
Art. no:400082
Wall duct RG125 Ø125/350 mm
Art. no:400023
Louver PS100 square w/spigot Ø100 white
Art. no:119790
Louver PS100 square w/spigot Ø100 black
Art. no:118454
Gravity grille MW 100 w/spigot Ø100 BL
Art. no:09121
Wall duct 0,5m Ø125 mm
Art. no:400081
Wall duct RG100 Ø100/350 mm
Art. no:400022
Louver PR100 w/spigot Ø100 white
Art. no:119789
Louver PR100 w/spigot Ø100 black
Art. no:09120
Wall duct 0,5m Ø100 mm
